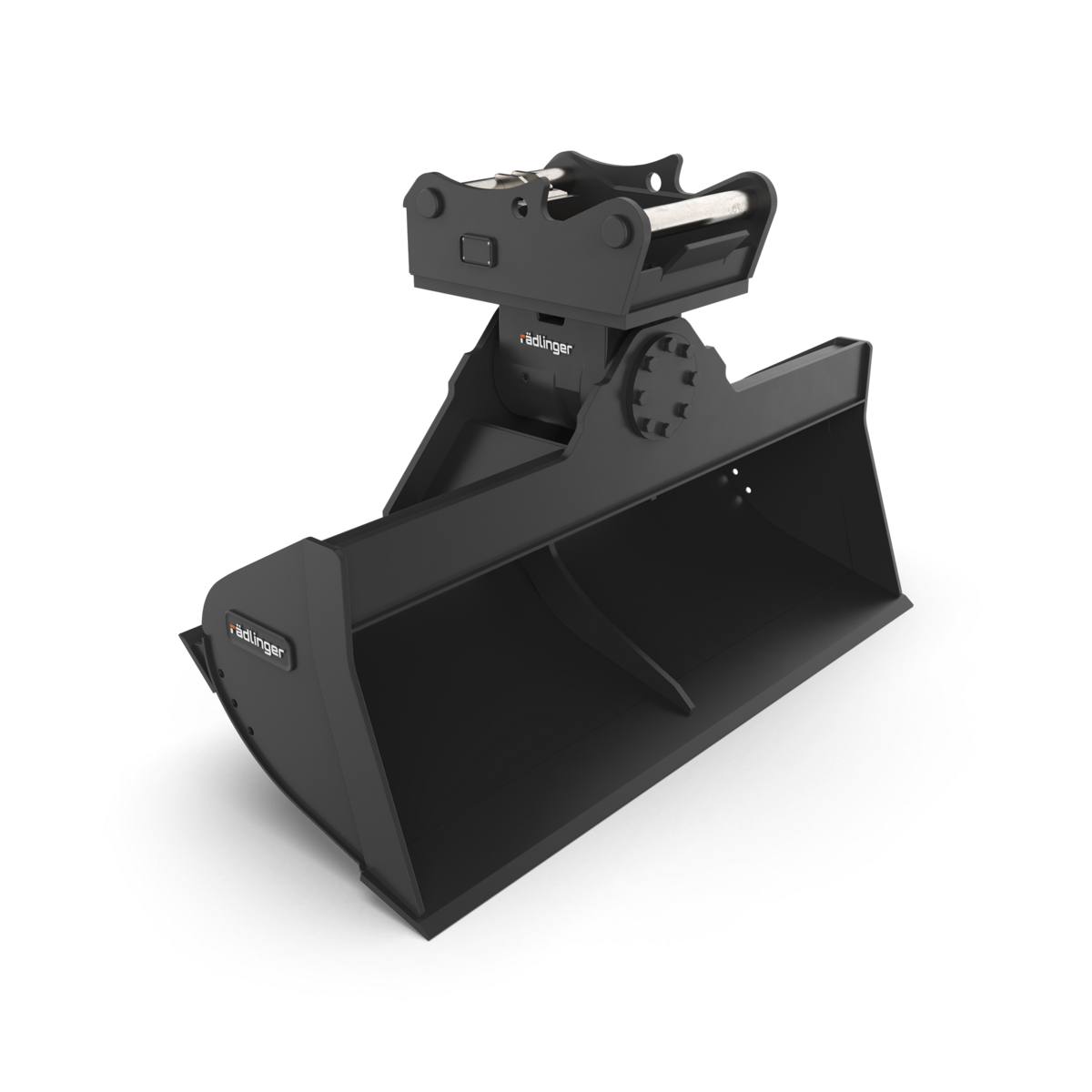

Ditch Cleaning Bucket with Tilt Motor (11 to 40 t)

Choose model

View product

Operating weight

11 - 40 t

Fields of application

Earth Movement

Application

This Ditch Cleaning Bucket is used for picking up, transporting and pouring out soil and lightweight ground (light and medium-heavy use). The bucket is exceptionally suited for ditch and trough construction, for the creation of embankments and shoulders, for grading and ditch cleaning and for the creation of complex ground forms.

Features

Robust and low-maintenance tilt motor
Embankment edge
Hydraulic hoses are directly fed to the tilt motor to rule out damage
Bolts, cylinder and cylinder covering not needed
Screw-retained suspension for changing for various carrier devices
Integrated pressure relief valve prevents overload of the tilt motor
Drainage holes
Protruding base to the side in HB400
Tilt movement 2 × 45°

Extra equipment

Special seal to protect the standard motor seal when used under water or in fine sandy soils available on request for tilt motor classes II S and III L
Bucket body in HB400
Load retaining valve
GPS mount

Ditch Cleaning Bucket with Tilt Motor (11 to 40 t) in use

Tilted Ditch Cleaning Bucket with Tilt Motor (11 to 40 t) by Rädlinger

Filled Ditch Cleaning Bucket with Tilt Motor (11 to 40 t) by Rädlinger

Note on the variants: Information on the variant with Tilt Motor Class V (40 – 50 t) upon request.

Variants

Tilt Motor Class I (11 - 15 t)

Cutting width	Capacity ISO	Weight
1.800 mm	440 l	626 kg	Enquire variant
2.000 mm	495 l	658 kg	Enquire variant
2.200 mm	550 l	690 kg	Enquire variant
2.400 mm	605 l	722 kg	Enquire variant

Tilt Motor Class II (15 - 19 t)

Cutting width	Capacity ISO	Weight
1.800 mm	600 l	833 kg	Enquire variant
2.000 mm	650 l	868 kg	Enquire variant

Tilt Motor Class II S (19 - 23 t)

Cutting width	Capacity ISO	Weight
1.800 mm	800 l	961 kg	Enquire variant
2.000 mm	900 l	1.002 kg	Enquire variant
2.200 mm	1.000 l	1.043 kg	Enquire variant

Tilt Motor Class III L (23 - 26 t)

Cutting width	Capacity ISO	Weight
2.000 mm	1.000 l	1.263 kg	Enquire variant
2.200 mm	1.125 l	1.315 kg	Enquire variant
2.400 mm	1.250 l	1.366 kg	Enquire variant
2.600 mm	1.375 l	1.418 kg	Enquire variant

Tilt Motor Class III (23 - 29 t)

Cutting width	Capacity ISO	Weight
2.000 mm	1.100 l	1.515 kg	Enquire variant
2.200 mm	1.260 l	1.572 kg	Enquire variant
2.400 mm	1.430 l	1.632 kg	Enquire variant
2.600 mm	1.600 l	1.691 kg	Enquire variant

Tilt Motor Class IV (29 - 40 t)

Cutting width	Capacity ISO	Weight
2.000 mm	1.330 l	2.090 kg	Enquire variant
2.200 mm	1.515 l	2.160 kg	Enquire variant
2.400 mm	1.700 l	2.245 kg	Enquire variant
2.600 mm	1.885 l	2.325 kg	Enquire variant
2.800 mm	2.070 l	2.395 kg	Enquire variant
