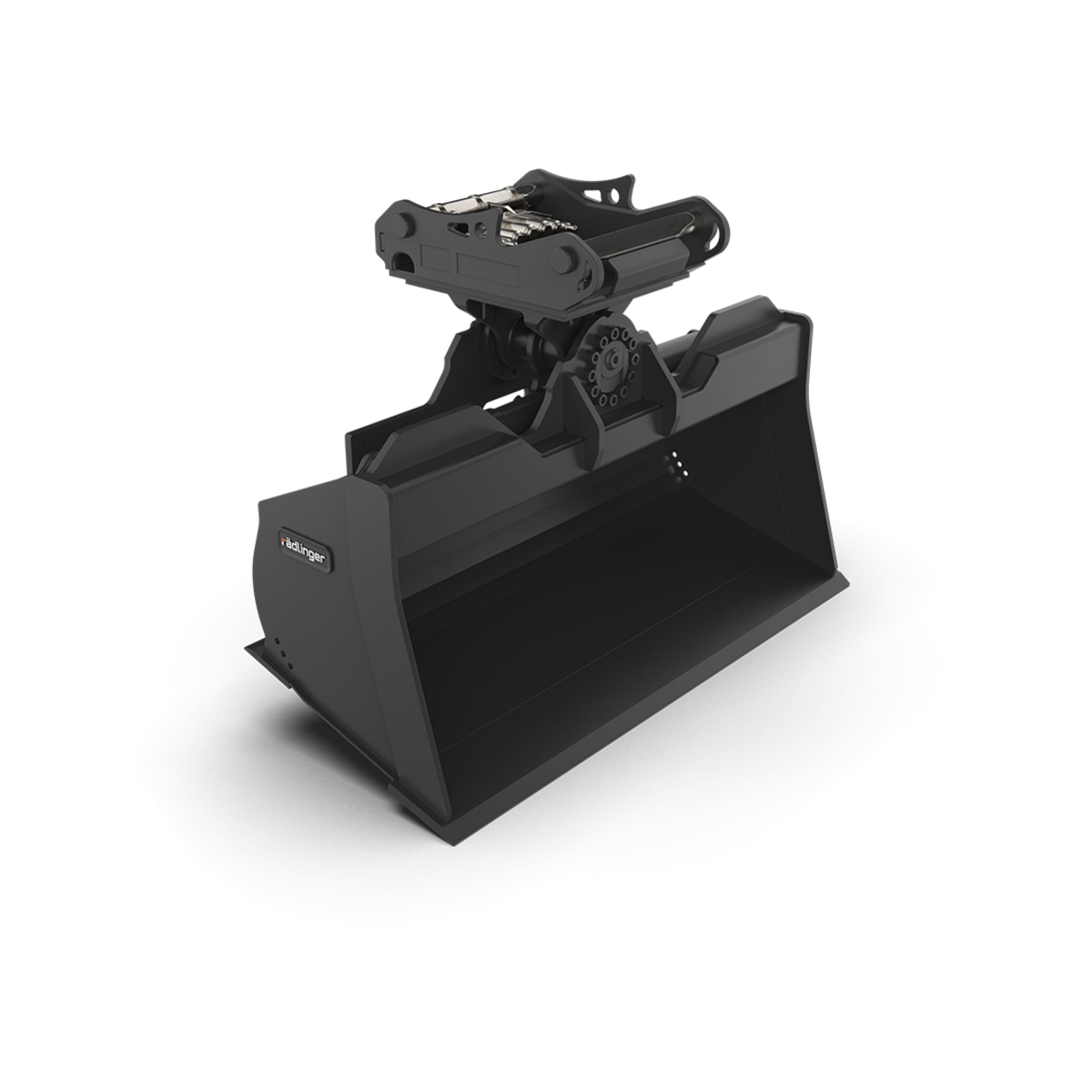

Ditch Cleaning Bucket with Cylinder (11 to 40 t)

Choose model
View product

Operating weight

11 - 40 t

Fields of application

Earth Movement

Application

The Ditch Cleaning Bucket with Cylinder is used for picking up, transporting and pouring out soil and lightweight ground (light and medium-heavy use). The bucket is exceptionally suited for ditch and trough construction, for the creation of embankments and shoulders, for grading and ditch cleaning and for the creation of complex ground forms.

Features

  • Embankment edge
  • Piston rod protection
  • No centre sickle (until cutting width 2200 mm), therefore also suitable for sticky material and optimal for dosing
  • Tilt movement 2 × 50° through two generously dimensioned hydraulic cylinders
  • Side-protruding base in HB400
  • 2° tapering per side
  • Drainage holes

Extra equipment

  • GPS mount
  • Profile blade
  • Optional protected load retaining valve

Ditch Cleaning Bucket with Cylinder (11 to 40 t) in use

Ditch Cleaning Bucket with Cylinder (11 to 40 t) by Rädlinger
Filled Ditch Cleaning Bucket with Cylinder (11 to 40 t) by Rädlinger

Variants

Cutting width Capacity ISO Weight
1.800 mm 440 l 575 kg Enquire variant
2.000 mm 495 l 605 kg Enquire variant
Cutting width Capacity ISO Weight
1.800 mm 600 l 633 kg Enquire variant
2.000 mm 650 l 662 kg Enquire variant
Cutting width Capacity ISO Weight
2.000 mm 900 l 934 kg Enquire variant
2.200 mm 1.000 l 969 kg Enquire variant
Cutting width Capacity ISO Weight
2.200 mm 1.260 l 1.650 kg Enquire variant
2.400 mm 1.390 l 1.750 kg Enquire variant
2.600 mm 1.520 l 1.830 kg Enquire variant
Cutting width Capacity ISO Weight
2.200 mm 1.530 l 1.950 kg Enquire variant
2.400 mm 1.690 l 2.080 kg Enquire variant
2.600 mm 1.850 l 2.170 kg Enquire variant
2.800 mm 2.070 l 1.958 kg Enquire variant
