Operating weight

29 - 130 t

Fields of application

Mining

Application

Like the Backhoe Bucket Individual/Heavy the Rädlinger Rock Bucket is the perfect partner for mining. With its special reinforcement and optimised side cutting edges, it is suited for even the most demanding applications.

Features

  • Welded blade reinforcement in front and side cutting edge reinforcement below
  • Heavy-duty and deep side cutting edges for power transmission from the box to the blade
  • With CWP tooth system as standard

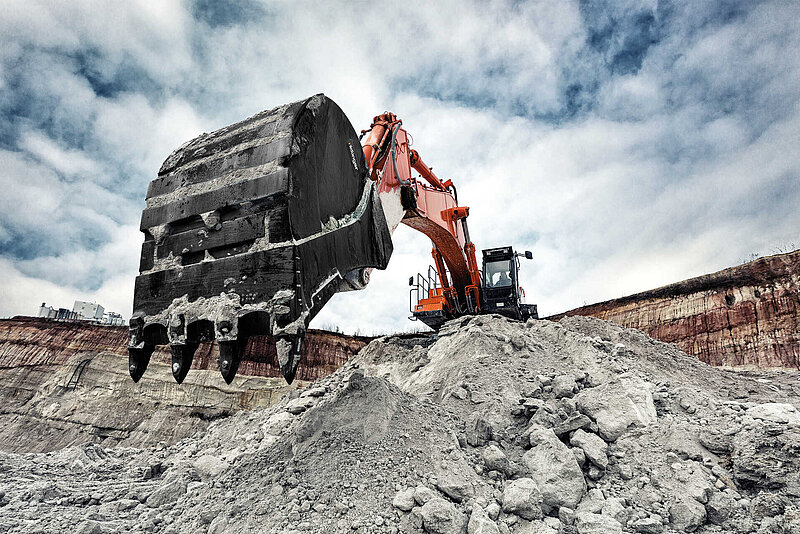

Rock Bucket in use

Note on the variants: Cutting width and capacity for Class 100 (100 – 130 t) in coordination

Variants

Cutting width Capacity ISO Teeth
800 mm 1.260 l 3 pc. Enquire variant
1.000 mm 1.580 l 3 pc. Enquire variant
1.200 mm 1.900 l 4 pc. Enquire variant
1.400 mm 2.220 l 4 pc. Enquire variant
1.600 mm 2.540 l 5 pc. Enquire variant
1.800 mm 2.860 l 5 pc. Enquire variant
Cutting width Capacity ISO Teeth
1.000 mm 1.790 l 3 pc. Enquire variant
1.200 mm 2.150 l 4 pc. Enquire variant
1.400 mm 2.510 l 4 pc. Enquire variant
1.600 mm 2.870 l 4 pc. Enquire variant
1.800 mm 3.230 l 5 pc. Enquire variant
2.000 mm 3.590 l 5 pc. Enquire variant
Cutting width Capacity ISO Teeth
1.400 mm 3.190 l 4 pc. Enquire variant
1.600 mm 3.640 l 4 pc. Enquire variant
1.800 mm 4.100 l 4 pc. Enquire variant
2.000 mm 4.550 l 5 pc. Enquire variant
2.200 mm 5.000 l 5 pc. Enquire variant
2.400 mm 5.460 l 6 pc. Enquire variant
Cutting width Capacity ISO Teeth
1.400 mm 4.010 l 3 pc. Enquire variant
1.600 mm 4.590 l 4 pc. Enquire variant
1.800 mm 5.170 l 4 pc. Enquire variant
2.000 mm 5.730 l 4 pc. Enquire variant
2.200 mm 6.300 l 5 pc. Enquire variant
2.400 mm 6.870 l 5 pc. Enquire variant
2.600 mm 7.450 l 5 pc. Enquire variant
