Backhoe Bucket with Tilt Motor

View product

Operating weight

10.000 - 50.000 kg

Application

The backhoe bucket with tilt motor is used in hydraulic construction and landscaping. through the tilt function, additional work on embankments and the removal of foundation soils is possible independent of the excavator footprint.

Features

Iideally combines the shape of the conventional backhoe and the tilting trench-clearing bucket
Fitted with straight blade and transverse wear strips
Problem-free, safe and maintenance-free operation through use of the tilt motor
tilting range of 2 x 45° limited by a stop

Extra equipment

Bucket body in HB 400
Drainage slots
Load hook
Reversible screw-on blade
Embankment edge
Special seal

Backhoe Bucket with Tilt Motor in use

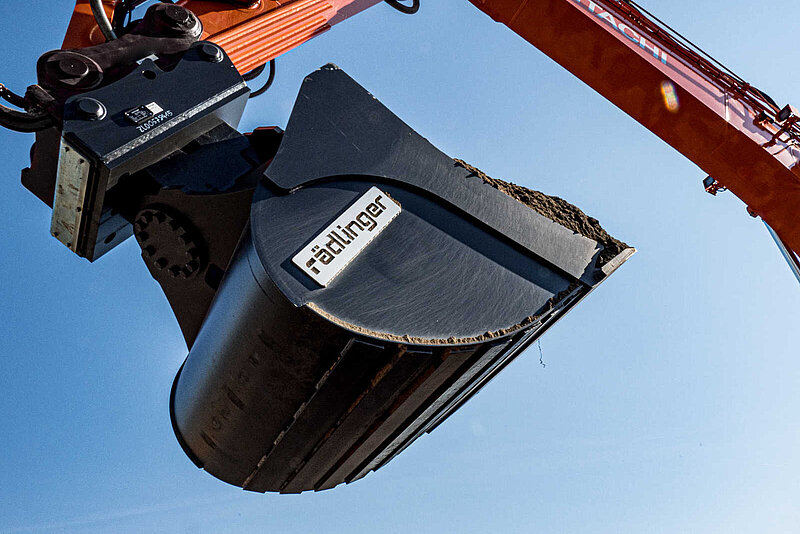

Backhoe Bucket with Tilt Motor by Rädlinger tilted while forming terrain

Variants

Tilt Motor Class I (10 - 12 t)

Cutting width	Capacity SAE	Weight
1.000 mm	350 l	555 kg	Enquire variant
1.200 mm	400 l	600 kg	Enquire variant
1.400 mm	450 l	642 kg	Enquire variant
1.600 mm	500 l	686 kg	Enquire variant

Tilt Motor Class I (12 - 14 t)

Cutting width	Capacity SAE	Weight
800 mm	330 l	600 kg	Enquire variant
1.000 mm	435 l	660 kg	Enquire variant
1.200 mm	540 l	715 kg	Enquire variant
1.400 mm	645 l	770 kg	Enquire variant
1.600 mm	750 l	830 kg	Enquire variant

Tilt Motor Class II S (14 - 19 t)

Cutting width	Capacity SAE	Weight
800 mm	435 l	777 kg	Enquire variant
1.000 mm	560 l	836 kg	Enquire variant
1.200 mm	680 l	895 kg	Enquire variant
1.400 mm	800 l	955 kg	Enquire variant
1.600 mm	92 l	1.014 kg	Enquire variant

Tilt Motor Class II S (19 - 23 t)

Cutting width	Capacity SAE	Weight
800 mm	540 l	928 kg	Enquire variant
1.000 mm	690 l	1.009 kg	Enquire variant
1.200 mm	84 l	1.091 kg	Enquire variant
1.400 mm	990 l	1.173 kg	Enquire variant
1.600 mm	1.140 l	1.254 kg	Enquire variant

Tilt Motor Class III L (23 - 26 t)

Cutting width	Capacity SAE	Weight
1.200 mm	1.050 l	1.263 kg	Enquire variant
1.400 mm	1.250 l	1.315 kg	Enquire variant
1.600 mm	1.450 l	1.366 kg	Enquire variant
1.800 mm	1.650 l	1.418 kg	Enquire variant

Tilt Motor Class III (26 - 29 t)

Cutting width	Capacity SAE	Weight
1.200 mm	1.200 l	1.513 kg	Enquire variant
1.400 mm	1.420 l	1.572 kg	Enquire variant
1.600 mm	1.630 l	1.632 kg	Enquire variant
1.800 mm	1.850 l	1.691 kg	Enquire variant

Tilt Motor Class IV (29 - 40 t)

Cutting width	Capacity SAE	Weight
1.400 mm	1.700 l	2.365 kg	Enquire variant
1.600 mm	2.000 l	2.500 kg	Enquire variant
1.800 mm	2.300 l	2.635 kg	Enquire variant
2.000 mm	2.600 l	2.770 kg	Enquire variant

Tilt Motor Class V (40 - 50 t)

Cutting width	Capacity SAE	Weight
1.600 mm	2.100 l	3.100 kg	Enquire variant
1.800 mm	2.450 l	3.250 kg	Enquire variant
2.000 mm	2.800 l	3.400 kg	Enquire variant
2.200 mm	3.150 l	3.550 kg	Enquire variant
